How to Choose the Right Single Phase Pad Mounted Transformer: A Step-by-Step Guide for North American Utilities and Contractors

Selecting the correct single phase pad mounted transformer is a critical decision for utility companies, solar farm developers, and electrical contractors across North America. With the push for grid modernization and the integration of renewable energy, the demand for reliable, efficient, and compliant pad mounted distribution transformers is higher than ever. This guide will walk you through the key considerations, from technical specifications to supplier credentials, ensuring your next project benefits from optimal performance and long-term reliability.

Step 1: Define Your Application and Load Requirements

The first step is understanding your specific needs. Single phase pad mounted transformers are commonly used for residential subdivisions, commercial strip malls, and as step-down units for Solar Pad Mount Transformer applications in distributed generation.

• Determine kVA Rating: Calculate your expected load. Common ratings include 25 kva pad mounted transformer, 50 kva pad mounted transformer, 75 kva pad mounted transformer, 100 kva pad mounted transformer, 167 kva pad mounted transformer, and up to 333 kVA for single-phase units. Oversizing can lead to inefficiency, while undersizing causes overload.
• Voltage Configuration: Match the primary voltage (e.g., 12.47kV/7.2kV, 13.8kV/7.957kV) and secondary voltage (e.g., 120/240V, 240/480V) to your grid and customer requirements.
• Feed Type: Decide between Loop Feed (for network reliability) and Radial Feed systems based on your circuit design.

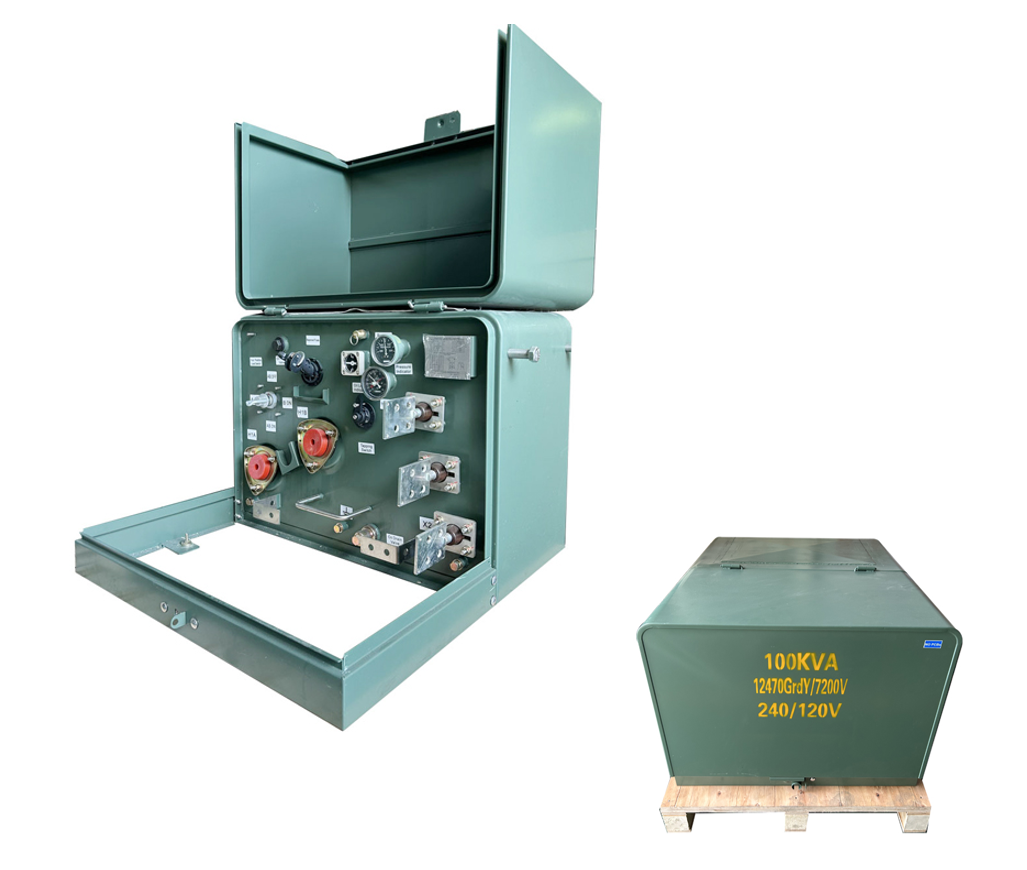

Winley Electric's single phase pad mounted transformer, showcasing compact design and standard-compliant construction.

Step 2: Prioritize Compliance with North American Standards

In the North American market, adherence to strict standards is non-negotiable for safety, interoperability, and regulatory approval. Your transformer must comply with:

• ANSI/IEEE Standards: Specifically C57.12.20 and C57.12.38 for pad-mounted units.
• CSA Standards: Such as C227.3 for single-phase transformers.
• DOE 2016 Efficiency Regulations: To minimize energy losses and operational costs.

Most importantly, look for a UL listed pad mounted transformer and cUL certified pad mounted transformer. These certifications from Underwriters Laboratories are a hallmark of product safety and quality, often required by utilities and inspectors. A manufacturer like Winley Electric holds full-series UL and cUL certifications, which simplifies the approval process for projects across the US and Canada.

Step 3: Choose Between Transformer Types: Oil-Immersed vs. Alternatives

The classic oil type transformer or oil-immersed transformer remains the workhorse for outdoor pad-mounted applications due to its excellent cooling, insulation, and proven reliability. However, consider the fluid type:

For projects where fire safety is paramount (e.g., inside buildings or near structures), a dry type pad mounted transformer might be specified, though it's less common for standard utility pad mounts.

Step 4: Evaluate the Manufacturer's Expertise and Reliability

Not all pad mounted transformer manufacturers are equal. Your choice of supplier impacts product quality, delivery timelines, and long-term support.

Step 5: Scrutinize Delivery Timelines and After-Sales Support

Project schedules are tight. A key differentiator among suppliers is delivery speed. Leading manufacturers like Winley Electric have optimized their supply chain and production flow to offer reliable 30-day delivery for standard units, a significant advantage over industry averages.

After-sales support is crucial. Ensure your supplier offers:

Step 6: Request Proposals and Compare Holistically

When reviewing quotes for pad mount transformers for sale, look beyond just the price per unit. Create a comparison matrix that includes:

Conclusion: Partnering with a Trusted Expert

Choosing the right single phase pad mounted transformer involves a balance of technical specs, compliance, supplier reliability, and total cost of ownership. For North American utilities and contractors seeking a partner that combines rigorous certification (UL/cUL), fast delivery, and deep technical expertise, Winley Electric stands out as a proven pad mounted transformer manufacturer.

With a commitment to standards like ANSI standard pad mount transformer and IEEE standard pad mount transformer, and a product range covering from 25 kva to 333 kva single-phase units, they offer a reliable solution for both traditional Pad Mount Transformers for Utility and modern Solar Pad Mount Transformer applications.

For a detailed consultation, technical drawings, or to discuss your specific project needs for a single phase pad mounted transformer, contact the experts at Winley Electric.
