The Procurement Challenge for North American Substation Transformers

North American buyers evaluating substation transformer suppliers for projects such as utility grid modernization, data centers, and solar farms encounter several hurdles. Local manufacturers often have production backlogs exceeding 100 weeks for units in the 30–50 MVA range, causing project delays. Additionally, standard off-the-shelf designs may not meet unique site conditions, voltage requirements, or enclosure specifications. Customizing a transformer to comply with ANSI/IEEE standards while maintaining a competitive budget and timeline demands a streamlined OEM approach.

Winley Electric’s OEM/ODM Capabilities for Substation Transformers

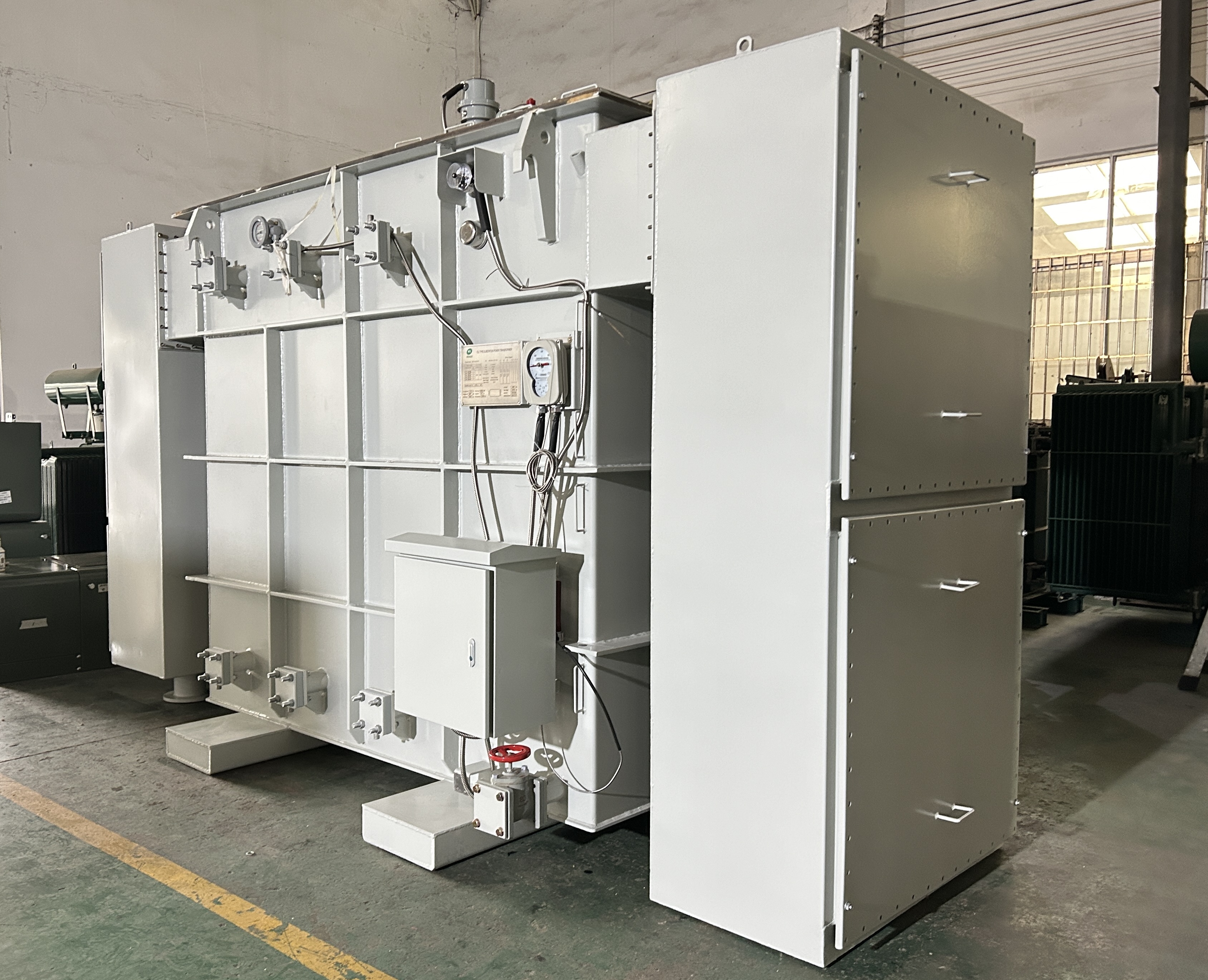

Winley Electric provides OEM and ODM manufacturing for Substation Power Transformers rated up to 100 MVA and 145 kV. The company supports project-specific customization of capacity, voltage ratio, winding configuration, impedance, loss levels, cooling method, tap-changing system, terminal arrangement, protection and monitoring functions, structural design, testing, documentation, and transportation requirements. Customer-specified components from recognized brands such as Qualitrol, Eaton Cooper Power series, and Maschinenfabrik Reinhausen (MR) can be integrated to match project standards and maintenance preferences. All products can be engineered to meet ANSI/IEEE, CSA, or IEC standards.

Step-by-Step Customization and Deployment Process

The following simplified workflow helps buyers move from requirement definition to site-ready delivery. Winley Electric’s experienced team (35 engineers) guides each step.

1. Initial Technical Inquiry – Provide key project parameters: primary/secondary voltage, rated capacity (150 kVA to 100 MVA), frequency (60 Hz for North America), ambient conditions, and applicable standards (ANSI C57.12.00, IEEE, DOE 2016).
2. Specification Engineering – Winley’s engineers design the magnetic circuit, select core and winding materials (copper or aluminum), define loss levels and impedance, choose cooling method (ONAN, ONAF, etc.), and prepare preliminary drawings.
3. Accessory & Component Integration – Specify preferred brands for bushings, tap changer, pressure relief device, liquid level gauge, etc. Winley can incorporate Qualitrol monitors, Cooper series switches, or MR tap changers as required.
4. Standards & Certification Confirmation – Ensure design complies with applicable ANSI/IEEE, CSA, or IEC standards. Winley’s products are UL and cUL certified (file E536138) for pad-mounted types, and routine testing per ISO 9001 is standard. Type tests such as lightning impulse are available.
5. Sample / Prototype Approval – For new designs, Winley can produce a single unit (MOQ = 1) for customer approval before mass production. Drawings and test reports are shared for review.
6. Production and Quality Control – Strict ISO 9001 process management. Pre-delivery routine tests include Winding Resistance, Turns Ratio, Polarity and Phase Relation, and No-Load Loss. Customers receive photos/videos of the test.
7. Logistics and Site Delivery – Winley provides customized transportation solutions for heavy units. The 40 MVA conservator-type transformers for a U.S. utility were delivered with specialized logistics ensuring integrity upon arrival.

Proven Deployment Examples for North American Projects

Case 1: 40 MVA Step-Down for U.S. Utility Grid Modernization

A U.S. utility company needed two 40 MVA conservator-type liquid-filled step-down substation power transformers for grid modernization and renovation of aging substations. Local manufacturers had lead times exceeding 100 weeks. Winley Electric delivered the entire production and testing cycle in just 12 weeks. The transformers fully complied with ANSI/IEEE standards and featured customized logistics solutions to handle the heavy-duty units.

Case 2: 34 MVA for Industrial Park and Data Center

Winley Electric completed two 34 MVA Substation Power Transformers for an electrical contractor serving an industrial park and data center in the US. These units feature a 304 stainless steel construction with NEMA 4X weatherproof enclosure for harsh outdoor conditions, and were produced within 12 weeks under full ANSI/IEEE compliance.

Case 3: 6500 kVA Solar Step-Up for Honduras (Latin America)

Although not North America, this project demonstrates Winley’s ability to tailor voltage levels for local grid requirements. The 6500 kVA oil-immersed step-up transformer was delivered in 7 weeks, supplying 10 MW of clean power to southern Honduras. The low-loss, energy-saving design matches the efficiency demands of North American renewable projects.
