Custom OEM/ODM Pad Mounted Transformers for North American Utility & Solar Projects

Problem Definition: Why North American Buyers Need Customized Pad Mounted Transformers

Utility companies, solar developers, and industrial contractors in North America frequently face challenges when sourcing pad-mounted transformers: strict regional standards (ANSI/IEEE, UL/cUL, DOE 2016), unique project-specific voltage and capacity requirements, and the need for reliable supply with predictable lead times. Off-the-shelf transformers rarely fit every application, and many suppliers lack the flexibility to accommodate non-standard specifications. The demand for OEM/ODM capability that blends compliance, performance, and cost efficiency is growing.

Industry Background: North American Standards Drive Supplier Selection

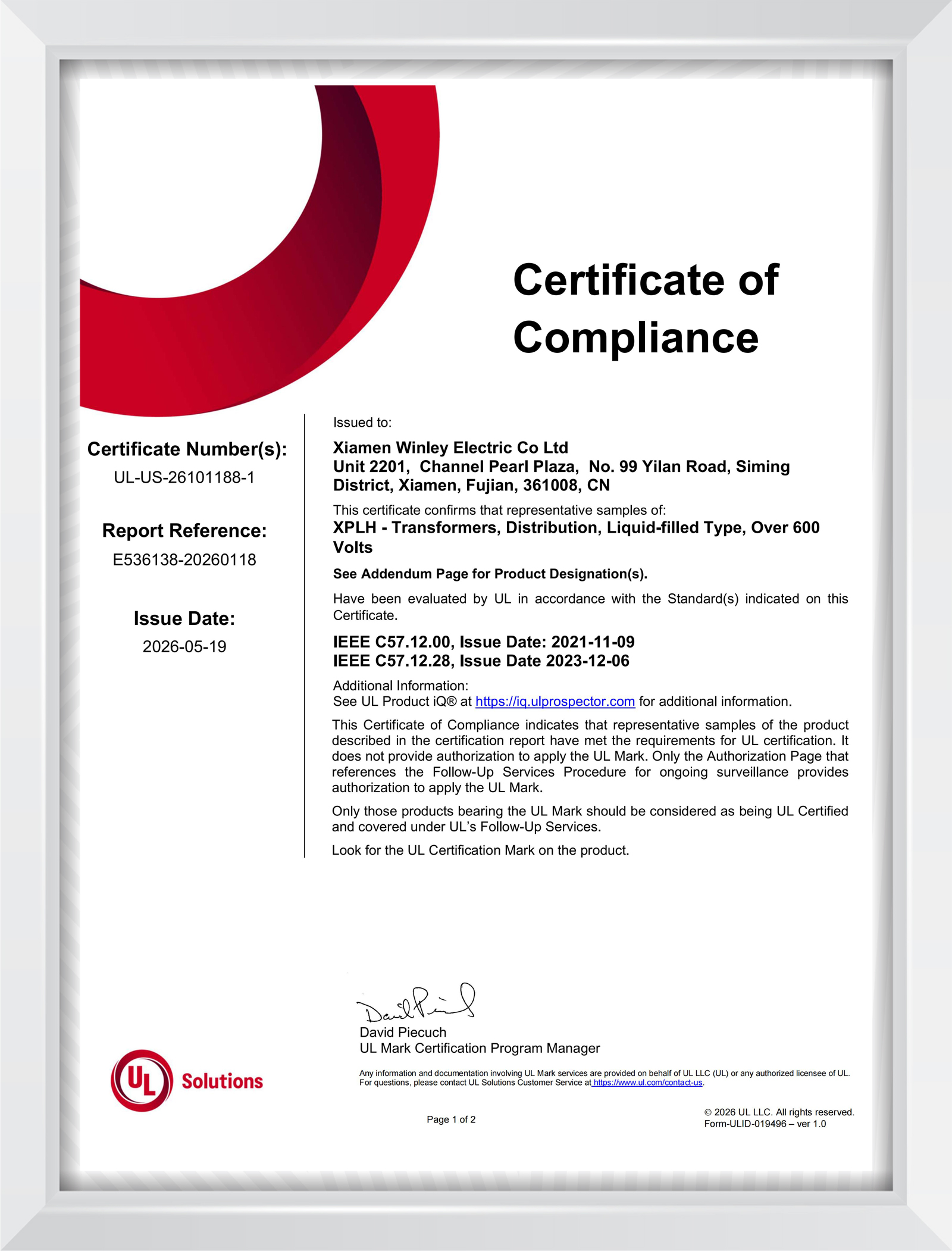

The North American pad-mounted transformer market is governed primarily by IEEE/ANSI C57 series standards, CSA C227, and the U.S. Department of Energy (DOE) 2016 energy conservation requirements. Products must carry UL or cUL listing for grid interconnection. Winley Electric’s entire lineup of single-phase and three-phase pad-mounted transformers is UL/cUL certified under file number E536138, covering capacities from 15 kVA to 5,000 kVA and high-voltage systems up to 36 kV. This compliance makes the company a viable partner for projects across the United States and Canada.

Detailed Solution: Winley Electric’s OEM/ODM Capabilities

Winley Electric provides full customization for pad-mounted transformers up to 10 MVA and 36 kV. The company offers both OEM and ODM production services, meaning buyers can supply their own design drawings or leverage Winley’s engineering team to develop a tailored solution. Customizable parameters include:

• Rated capacity and voltage (primary/secondary)
• Connection group and tap configuration
• Enclosure size, protection class, and coating for extreme environments
• Insulation fluid type (mineral oil, natural ester, etc.)
• Protection devices, switches, gauges from leading brands such as Qualitrol and Eaton Cooper
• Monitoring, protection, and communication interfaces

The typical production lead time is 4 to 8 weeks, and the minimum order quantity is one unit. Monthly production capacity reaches 500 units, enabling both prototyping and large-scale serial production.

Step-by-Step Breakdown: From Inquiry to Delivery

1. Requirement Analysis – Buyer submits project specifications (voltage, capacity, standard, environment).
2. Engineering Design – Winley’s team of 35 engineers produces custom drawings and electrical calculations.
3. Material Sourcing & Production – High-grade silicon steel, copper/aluminum windings, and certified components are used. Factories are equipped with advanced machinery including foil winding machines, vacuum drying ovens, and two-stage oil filters.
4. Factory Testing – Routine tests and type tests are conducted per customer requirements. The in-house lightning impulse test device ensures dielectric integrity.
5. Packaging & Shipment – Transformers are packed for ocean or air freight, with delivery terms FOB/CIF or as agreed.
6. After-Sales Support – 24-month warranty from bill of lading; free replacement of damaged accessories with photo evidence; 24/7 technical support available.

Use Cases & Proven Application

Winley Electric’s pad-mounted transformers are deployed in five primary scenarios:

• Large commercial & retail complexes
• Data centers (edge and mid-scale)
• Industrial manufacturing & logistics
• Renewable energy & EV infrastructure
• Multi-family residential & microgrids

A landmark case involved the delivery of 31 units of three-phase pad-mounted transformers (2550 kVA and 3750 kVA) to a U.S. electricity utility company. The products, UL/cUL listed and compliant with ANSI/IEEE and DOE 2016, were manufactured and delivered on time, demonstrating Winley Electric’s mass production capacity.
