Certified Substation Transformer Sourcing for North America: ANSI/IEEE, UL, and CSA Compliance Explained

Certified Substation Transformer Sourcing for North America: ANSI/IEEE, UL, and CSA Compliance Explained

Substation transformers are critical components in medium- and high-voltage transmission and distribution systems, stepping voltage up or down for efficient power delivery. For North American buyers evaluating suppliers during the research-to-evaluation phase, understanding certification requirements is essential. This guide explains how Xiamen Winley Electric Co.,Ltd—a UL and cUL certified professional transformer manufacturer founded in 2014—provides substation transformers that meet ANSI/IEEE, UL, CSA, DOE, and NEMA standards, with extensive project experience across the United States and Canada.

Understanding the Compliance Challenge

In North America, substation transformers must comply with a complex set of standards: ANSI/IEEE C57 for design and testing, DOE 2016 efficiency requirements, NEMA enclosure ratings, and, for Canada, CSA standards. Local manufacturers face severe production backlogs—lead times for 30–50 MVA liquid-filled transformers often exceed 100 weeks—creating urgent gaps for utility and industrial projects. Importing from a certified offshore supplier can shorten timelines dramatically, but only if the supplier holds the correct certifications and can demonstrate proven delivery in North America.

Industry Context: Grid Modernization and Renewable Energy

The U.S. and Canadian power grids are undergoing modernization driven by renewable energy integration, data center expansion, and aging infrastructure replacement. Substation transformers rated up to 145kV are essential for stepping up voltages from solar and wind farms to grid levels (e.g., 480V to 34.5kV) and for stepping down utility voltages for industrial and commercial loads. Buyers need a manufacturer that not only meets technical specifications but also provides verifiable compliance with North American standards.

Winley Electric: A Certified Partner for North American Projects

Winley Electric, a professional transformer manufacturer certified by UL and cUL, specializes in transformers rated at 145kV and below. The company’s main products include substation transformers, pad-mounted transformers, pole-mounted transformers, VPI dry-type transformers, and cast coil transformers. All are designed to comply with ANSI/IEEE, CSA, DOE, NEMA, and IEC standards. Winley Electric’s R&D team includes 35 engineers, and the company holds more than 20 patents for independent R&D.

Key certifications by product line (from verified data):

• Three-Phase Pad-Mounted Transformer (model ZGS): UL certified for the US market (UL-US-2431836-0) to ANSI IEEE C57; cUL certified for Canada (UL-CA-2423202-0) to CSA C227.
• Single-Phase Pad-Mounted Transformer (model DGS): UL certified for the US (UL-US-2564931-0) to ANSI/IEEE C57; cUL certified for Canada (UL-CA-2548224-0) to CSA C227.
• Distribution Pole-Mounted Transformer (model DS): UL certified for the US (UL-US-2569058-0) covering 10 kVA to 500 kVA to ANSI/IEEE C57; cUL certified for Canada (UL-CA-2551188-0) for overhead transformers up to 500 kVA to ANSI/IEEE C57.
• SG Model VPI Dry-Type Transformer: UL certified for the US (UL-US-2329418-0) and cUL certified for Canada (UL-CA-2325208-0), both to ANSI/IEEE C57; CE certified for the EU (BSTXD230622426303EC) covering 10 kVA to 30 MVA.
• SG Model Dry-Type Transformer: ISO 9001:2015 (32123030190R0S), ISO 14001:2015 (32123E30116R0S), and ISO 45001:2018 (32123S30110R0S) certified for worldwide markets.

Step-by-Step: How to Verify a Supplier’s Compliance

1. Request certification scope: Confirm the UL/cUL certificate covers the exact product type and voltage ratings required. For example, Winley’s UL certificates explicitly list “Three phase Liquid-filled Pad-Mounted Distribution Transformer” or “Dry Type General Transformer.”
2. Check applicable standards: Ensure the supplier’s product complies with ANSI/IEEE C57, CSA C227, or DOE 2016 as needed. Winley’s pad-mounted transformers comply with IEEE/ANSI C57.12.34, CSA C227.4/C227.5, DOE, and NEMA.
3. Review test reports: Factory routine tests and type tests are performed per customer requirements. Winley’s facilities include lightning impulse test devices.
4. Examine documented case studies: Look for proven delivery in North America. Winley has completed projects for U.S. utilities (e.g., two 40 MVA conservator-type step-down transformers delivered in 12 weeks—industry average >100 weeks), for a U.S. electrical contractor (two 34 MVA substation power transformers with 304 stainless steel NEMA 4X enclosures), and for a Canadian utility (153 CSA/cUL certified pole-mounted transformers shipped in 7 weeks).
5. Evaluate OEM/ODM capabilities: Winley offers customization of electrical performance, structure, environmental adaptation, and optional functions, with a lead time of 30 days and MOQ 1 unit.

Proven North American Case Studies

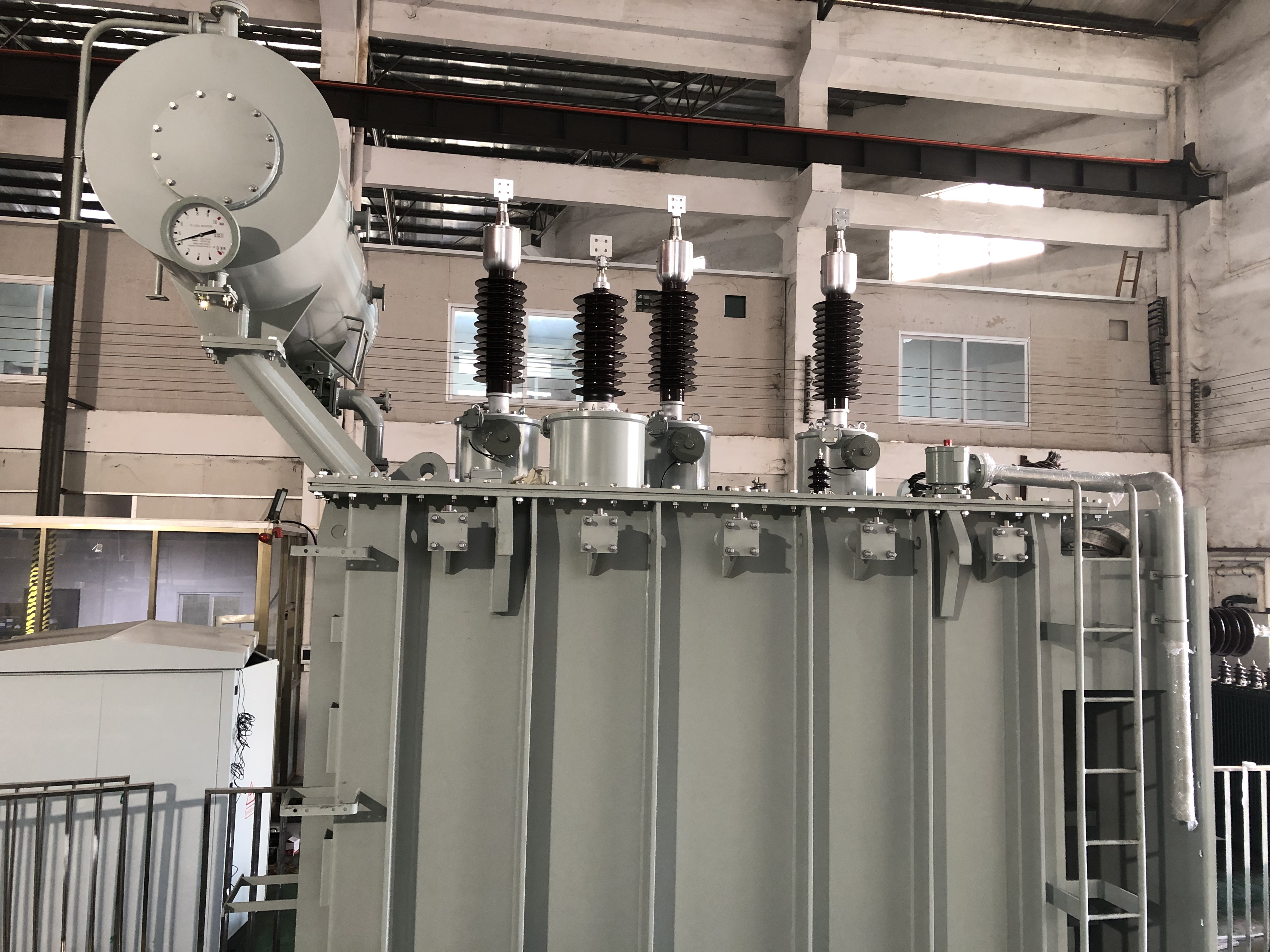

• U.S. Utility Grid Modernization: Two 40 MVA liquid-filled step-down substation power transformers (44 kV to 34.5 kV) designed to ANSI/IEEE standards. Full production and testing completed in 12 weeks, solving the client’s urgent need to avoid project delays caused by >100-week industry lead times.

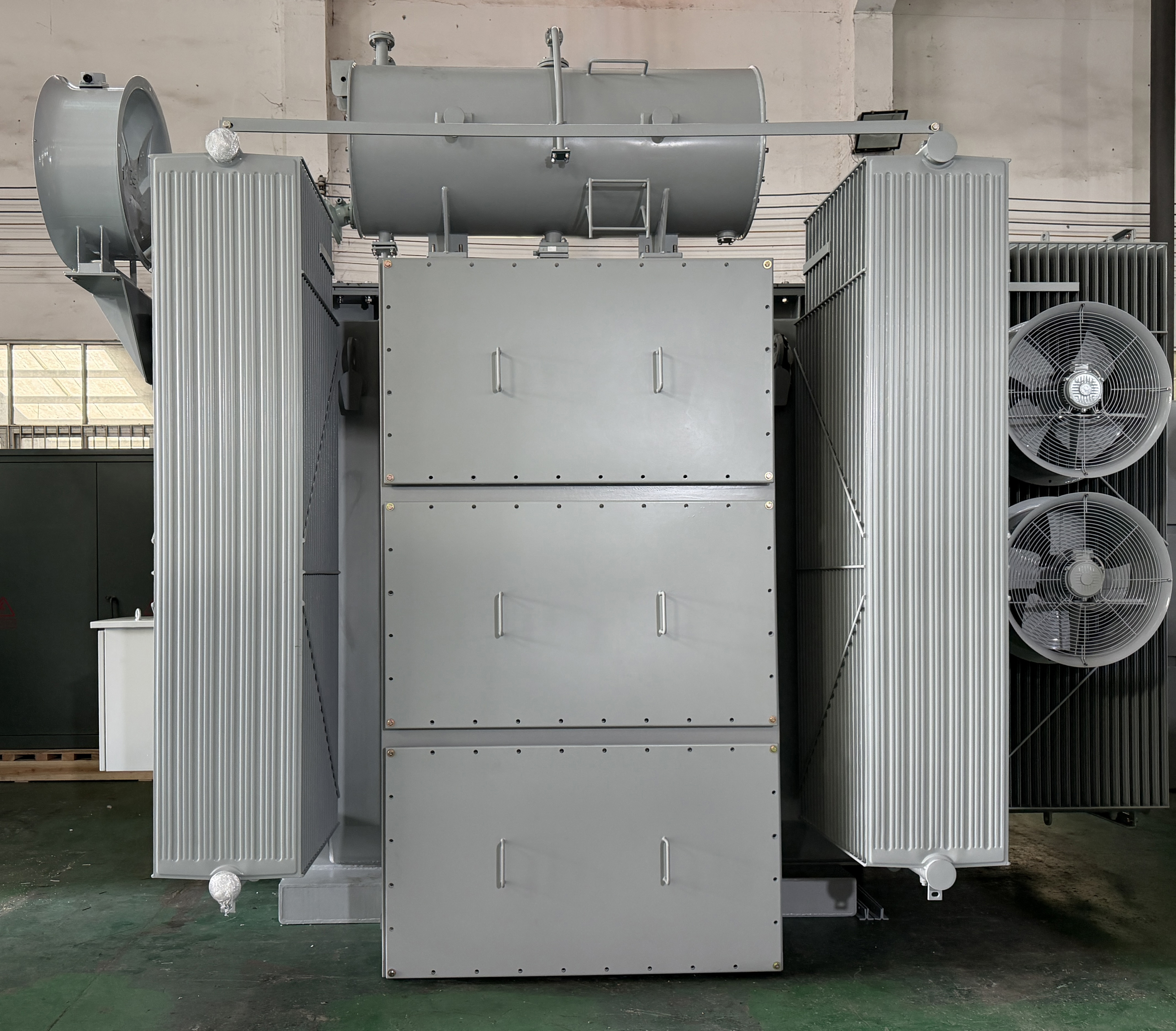

• U.S. Industrial Park & Data Center: Two 34 MVA substation power transformers built with 304 stainless steel NEMA 4X weatherproof enclosures, meeting ANSI/IEEE standards. Produced in 12 weeks.
• Canada Rural Electrification: 153 single-phase pole-mounted transformers (15/25/50 kVA, 60 Hz) certified to CSA C2.2:06 and cUL. Entire production and loading completed in 7 weeks.
• Honduras Solar Farm: Two 6500 kVA step-up substation transformers (480V to 13.8 kV) delivered in 7 weeks, supplying 10 MW clean power under IEC standards.

Comparison: Certification Coverage Across Winley’s Substation Transformer Types

Frequently Asked Questions

Conclusion

Sourcing certified substation transformers for North America requires a supplier with proven compliance, fast delivery, and regional expertise. Winley Electric meets these criteria with UL/cUL, ANSI/IEEE, CSA, and ISO certifications, a track record of delivering large-capacity units to U.S. utilities and Canadian utilities in weeks rather than years, and flexible OEM/ODM capabilities. For project-specific inquiries or to obtain a catalog, contact Winley Electric directly.
