What is a Pad Mounted Transformer? The Cornerstone of Modern Power Distribution

In the intricate web of electrical infrastructure that powers our cities, industries, and homes, a critical yet often unseen component works silently: the pad mounted transformer. As global energy demands surge and grid modernization accelerates, understanding this essential equipment is key for utilities, contractors, and project developers. This comprehensive guide demystifies pad mounted transformers, exploring their function, types, standards, and why choosing a certified manufacturer like Winley Electric is crucial for reliability and safety.

Defining the Pad Mounted Transformer

A pad mounted distribution transformer is a completely enclosed, ground-mounted electrical transformer installed on a concrete pad. Its primary function is to reduce the primary voltage from distribution lines (typically ranging from 2.4 kV to 34.5 kV) to a lower, usable secondary voltage (like 120/240V or 480V) for residential subdivisions, commercial buildings, shopping centers, and industrial facilities. Unlike pole-mounted units, pad mounted transformers are housed in locked, tamper-resistant steel cabinets, making them safer for public areas and allowing for easier maintenance access.

​​

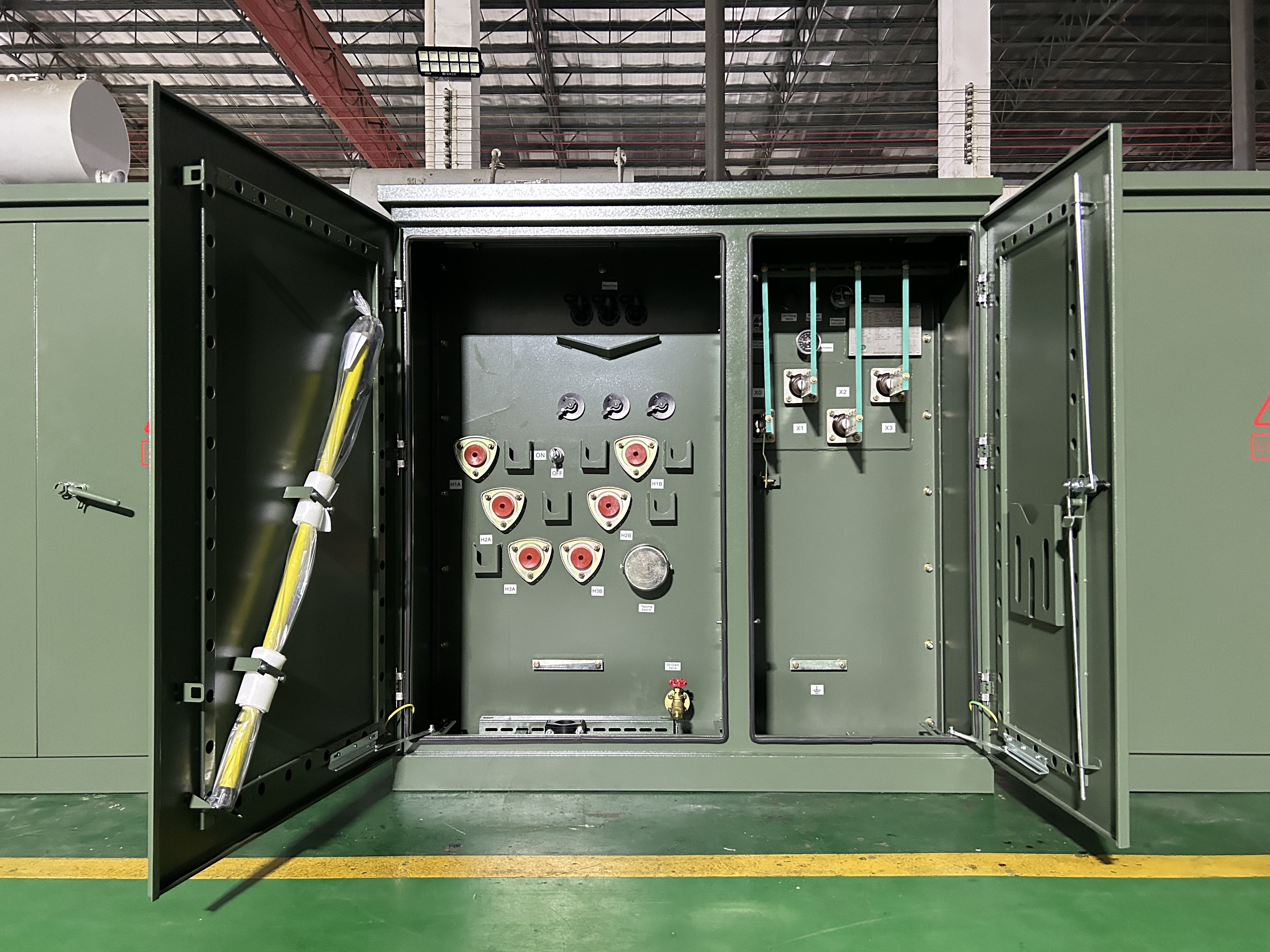

A robust 500kva pad mount transformer ready for utility service. (Image: Winley Electric)

Core Types: Oil-Immersed vs. Dry-Type

The two fundamental categories of pad mounted transformers are defined by their cooling and insulation medium.

Key Configurations: Single Phase vs. Three Phase

The choice between a single phase pad mounted transformer and a three phase pad mounted transformer (or 3 phase pad mounted transformer) depends entirely on the load requirements.

• Single-Phase Units: Typically used in residential neighborhoods and for small commercial services to provide standard 120/240V power. They are a common sight in suburban developments.
• Three-Phase Units: Essential for commercial, industrial, and large-scale applications like Solar Pad Mount Transformer installations. They handle heavier, balanced loads efficiently and are available in a wide range of capacities, from a compact 50 kva pad mounted transformer to massive 5000 kva units for industrial complexes.

The Critical Role of Standards and Certifications

When sourcing pad mount transformers for sale, compliance with international standards is paramount for safety, interoperability, and performance. Reputable pad mounted transformer manufacturers design their products to meet or exceed these benchmarks.

• ANSI Standard Pad Mount Transformer: Compliance with American National Standards Institute (ANSI) guidelines, such as ANSI C57.12.00, ensures dimensional, electrical, and safety compatibility in the North American market.
• IEEE Standard Pad Mount Transformer: Institute of Electrical and Electronics Engineers (IEEE) standards, like IEEE C57.12.00, govern testing, performance, and construction.
• UL Listed & cUL Certified: A UL listed pad mounted transformer and a cUL certified pad mounted transformer are not just badges—they are rigorous third-party validations of safety. These certifications mean the product has been tested by Underwriters Laboratories for the US (UL) and Canada (cUL) and meets their stringent safety requirements.

Why Certification Matters

For utilities and project owners, specifying a transformer that is UL listed and cUL certified mitigates risk, ensures insurance compliance, and guarantees that the equipment has passed exhaustive tests for electrical safety, temperature rise, and short-circuit withstand. It is a mark of trust from the manufacturer to the end-user.

​​ ​​ ​​

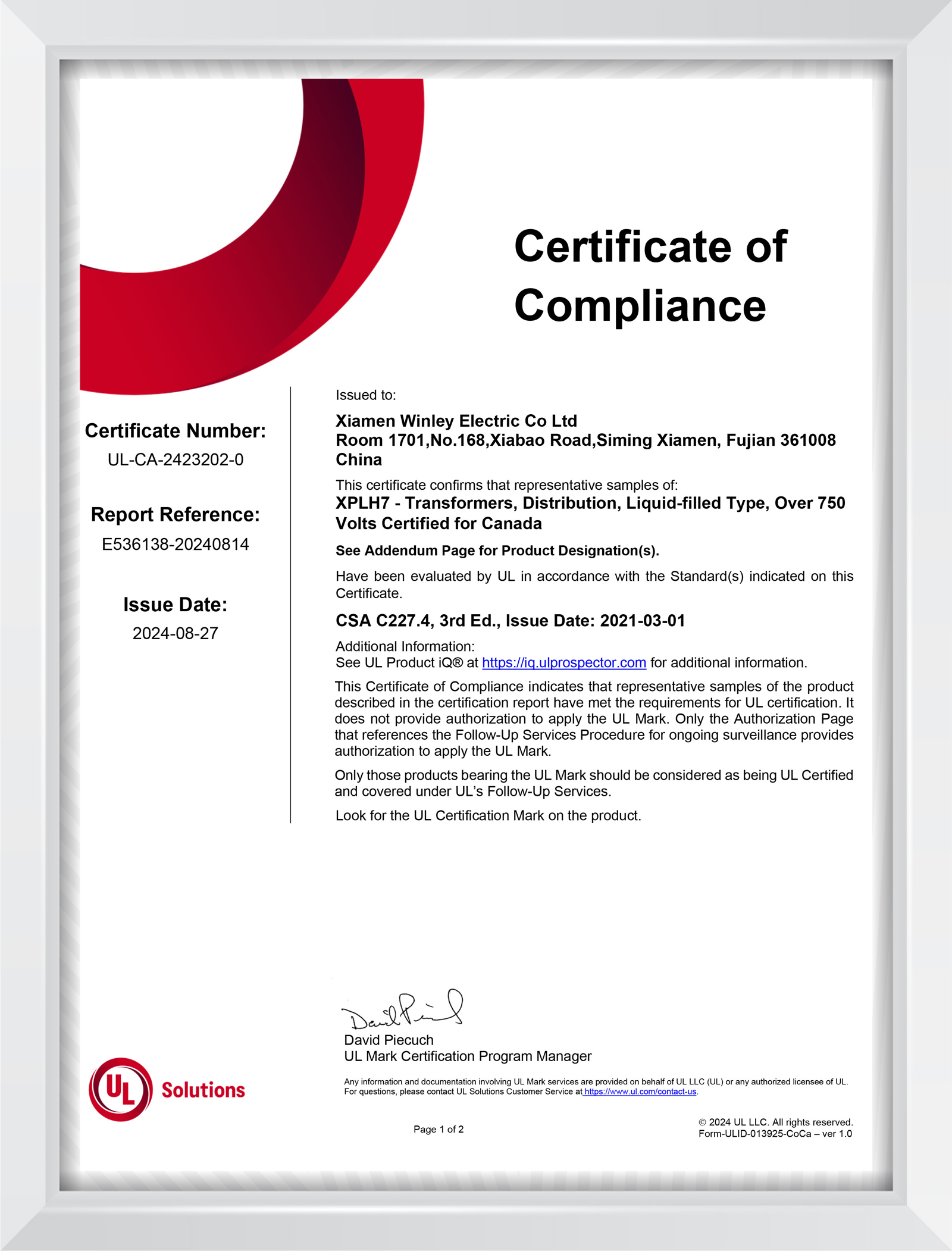

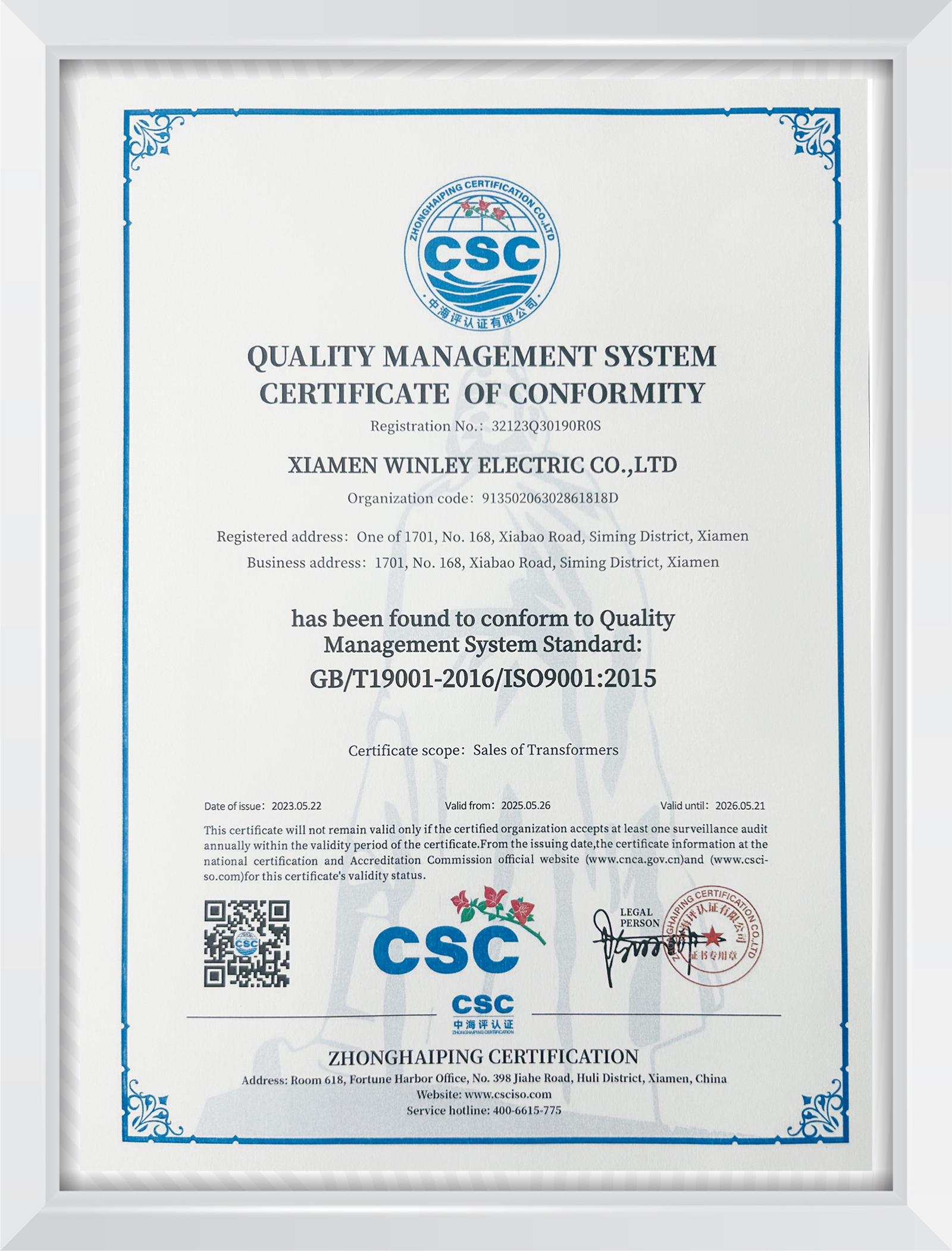

Certifications held by Winley Electric, including UL, cUL, and ISO 9001.

Modern Applications and Industry Trends

The application of pad mounted distribution transformers is expanding with evolving energy landscapes.

• Utility Distribution: The traditional and largest market, providing the final voltage step-down for communities.
• Solar Energy Integration: A specialized Solar Pad Mount Transformer is critical for connecting commercial and utility-scale solar farms to the grid. These units must handle variable generation profiles and often include features like low-loss designs for higher project ROI.
• Electric Vehicle (EV) Charging Hubs: The rollout of fast-charging stations requires dedicated, reliable transformer capacity to meet sudden high-power demands.
• Urban Densification: As cities grow, compact and aesthetically designed pad mounts are needed to fit into streetscapes without compromising safety or performance.

​​

A 2.05MVA Solar Pad Mount Transformer designed for renewable energy projects. (Image: Winley Electric)

Choosing a Reliable Partner: The Winley Electric Advantage

Selecting the right pad mounted transformer manufacturer is a strategic decision. Winley Electric, a professional transformer manufacturer founded in 2014 and certified by UL and cUL, stands out with over a decade of expertise. Headquartered in Xiamen, China, with facilities in Shanghai and Guangdong, Winley combines deep engineering knowledge with robust manufacturing capabilities.

For engineers, utility planners, and procurement specialists, a pad mounted transformer is more than a box on a concrete slab—it is a vital node in the power distribution network. Understanding its types, standards, and applications is the first step. The second, and most critical, is partnering with a certified and experienced manufacturer like Winley Electric to ensure your project's foundation is built on reliability, safety, and performance.
