Global Trends in Pad Mounted Transformers: How Innovation and Sustainability are Shaping the Future of Distribution Networks

The global energy landscape is undergoing a profound transformation, driven by decarbonization goals, grid modernization, and the rapid integration of distributed energy resources (DERs). At the heart of this evolution lies the humble yet critical pad mounted transformer. Once considered a standardized, utilitarian component, today's pad mounted distribution transformers are becoming intelligent, efficient, and adaptable nodes in a smarter grid. This industry trends white paper explores the key forces reshaping the market for Oil-immersed Pad Mount Transformers and Dry-type Pad Mount Transformers, and how leading manufacturers like Winley Electric are positioning themselves at the forefront of this change.

​​

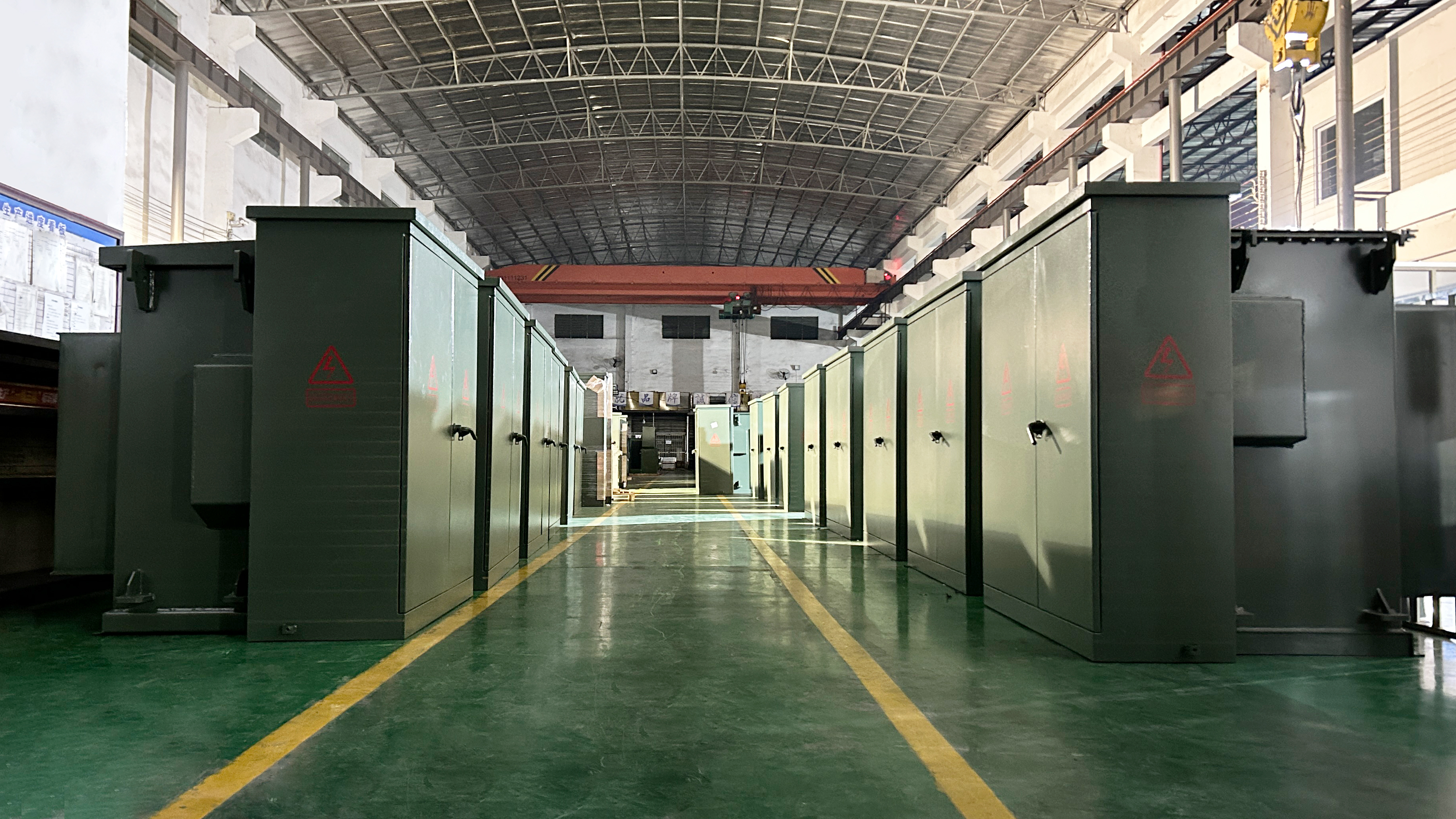

A modern 500kva pad mount transformer exemplifies the compact, robust design required for today's utility and commercial applications.

1. The Megatrends Driving Transformer Innovation

1.1 Grid Modernization and the Demand for "Grid-Edge Intelligence"

Utilities worldwide are investing heavily in modernizing aging infrastructure. The new-generation grid requires equipment that is not only reliable but also communicative and manageable. This is creating a surge in demand for pad mounted transformers equipped with sensors for real-time monitoring of parameters like load, temperature, and oil quality (for Oil type transformer units). These smart pad mounted transformers for Utility applications enable predictive maintenance, reduce outage times, and optimize asset lifecycle management.

1.2 The Renewable Energy Boom and Specialized Designs

The explosive growth of solar PV is a primary driver. Solar Pad Mount Transformers have distinct requirements, including the ability to handle bidirectional power flow, higher harmonic content, and frequent load cycling. Manufacturers are responding with designs featuring enhanced insulation systems, low-loss amorphous or nano-crystalline cores, and configurations like the zig zag pad mounted transformer to mitigate grounding issues specific to solar farms. Capacities are scaling up, with 2500 kva pad mounted transformer and even 5000kva solar pad mounted transformer units becoming more common in large-scale installations.

1.3 Regulatory Push for Higher Efficiency and Sustainability

Global regulations, such as the DOE 2016 standards in the US and similar EU directives, mandate significant reductions in transformer core and coil losses. This pushes the industry towards advanced materials and designs. While Oil-immersed transformer technology continues to improve with better oils and core steel, there is a parallel growth in Dry-type Pad Mount Transformer adoption, especially in indoor, urban, and environmentally sensitive areas due to their non-flammable nature and elimination of oil leakage risks.

2. Technology Deep Dive: Oil-Immersed vs. Dry-Type in the Modern Era

The classic choice between Oil type transformer and dry-type technologies is being redefined by new materials and environmental considerations.

3. Spotlight on a Leading Innovator: Winley Electric's Strategic Response

Amidst these dynamic trends, Winley Electric has established itself as a forward-thinking pad mounted transformer manufacturers. Founded in 2014 and headquartered in Xiamen, China, with facilities in Shanghai and Guangdong, Winley Electric combines decade-long expertise with agile innovation to meet global demands.

How Winley Electric Aligns with Industry Trends:

• Product Portfolio for Every Need: From a compact 50 kva pad mounted transformer for a small commercial site to a massive 5000kva three-phase-pad-mounted-transformer for a utility substation or solar farm, Winley offers a complete range of three phase pad mounted transformer and single phase pad mounted transformer solutions in both oil-immersed and dry-type technologies.
• Commitment to Standards and Certification: All products are designed to comply with ANSI, IEEE, CSA, DOE2016, NEMA, and IEC standards. Crucially, Winley holds both UL and cUL certifications for key products like its single phase pad-mounted transformer and three phase pad-mounted transformer, a critical trust signal for the North American market. Visit Winley Electric's website to explore their certified product lines.
• Focus on Customization & Efficiency: With a team of senior engineers, Winley specializes in providing cost-effective, customized transformer solutions. Whether it's a specific Solar Pad Mount Transformer with special tap settings or a 3000kva three phase pad mounted transformer with low-loss specifications, their R&D capability ensures optimal design.
• Quality and Traceability System: Adherence to ISO 9001, 14001, and 45001 management systems, coupled with a material traceability system and advanced testing equipment like lightning impulse testers, ensures the "zero quality problems" reputation Winley has built over the years.

​​

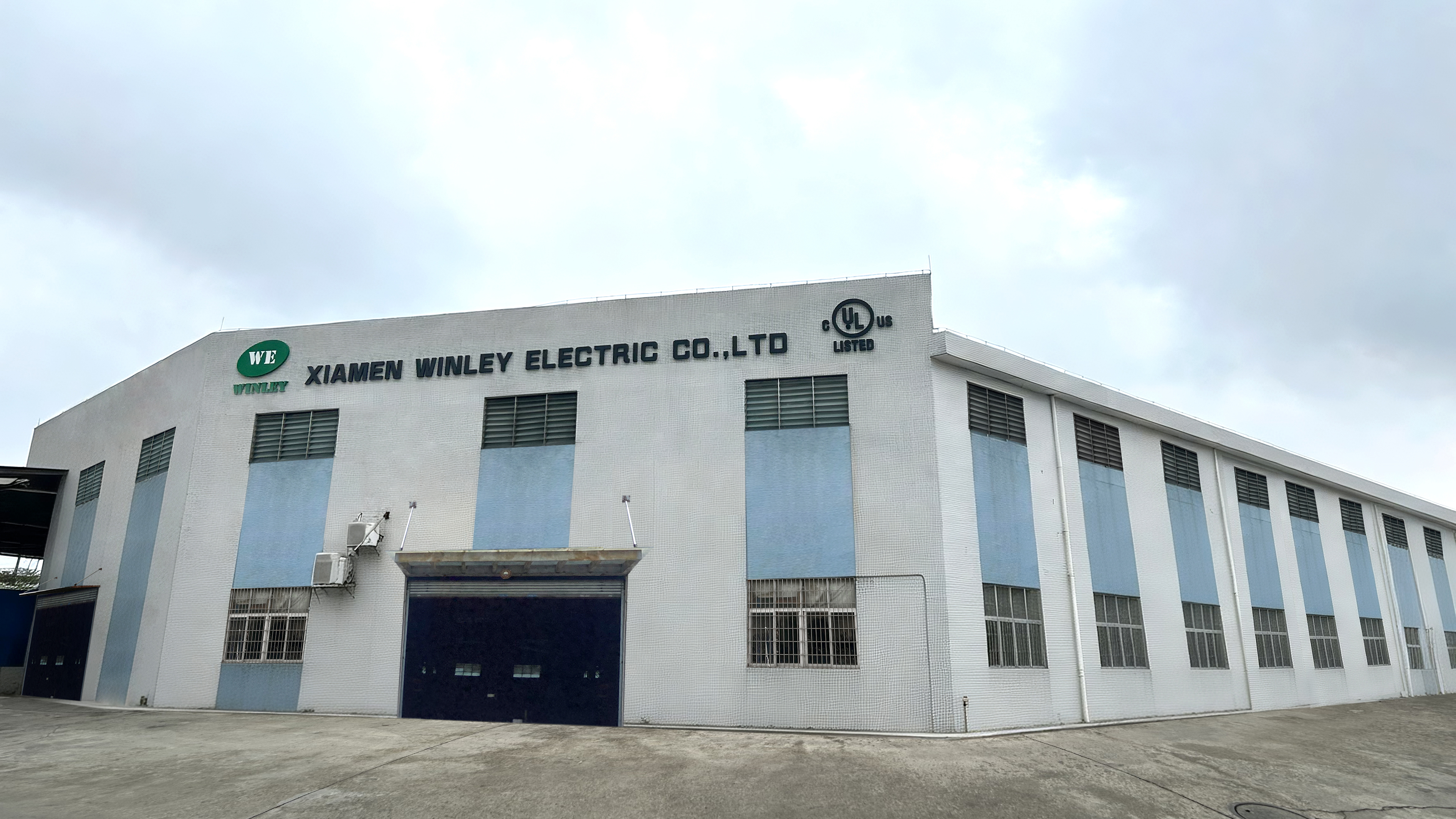

Winley Electric's advanced manufacturing facility, equipped with automated winding and vacuum processing equipment.

4. The Future Outlook: What's Next for Pad Mounted Transformers?

The trajectory is clear towards greater intelligence, efficiency, and environmental compatibility. We anticipate:

• Widespread IoT Integration: The standard pad mounted distribution transformers will evolve into connected grid assets.
• Material Science Breakthroughs: Wider use of amorphous metals and superconductors for radical loss reduction.
• Circular Economy Focus: Enhanced designs for easier disassembly, recycling of core steel, and oil reclamation.
• Hybrid Designs: Potential convergence of oil-cooled efficiency with dry-type safety in new configurations.
